12 Great Visualizations That Made History

A look at some of the visualizations that broke new ground and played significant roles in changing history.

by Drew Skau On January 26, 2012

150 Reactions
facebook share mail email A+ A-

Related posts

Most visualizations end up as passing follies that are significant in the short-term, but in the long-run they fade to the background with the rest of the noise. Occasionally, though, some visualizations end up in a perfect position to play a significant role in culture and history. Here are a few that have been fortunate enough to become significant.

1. One of the earliest known visualizations is a map. The famous Lascaux caves in France contain paintings on their walls that date from the paleolithic period. One particular painting shows three stars known as the Summer Triangle. These three stars, Vega, Deneb and Altair, were bright in the sky. The images around them may suggest ideas of constellations, ways to help remember the star patterns and navigate.

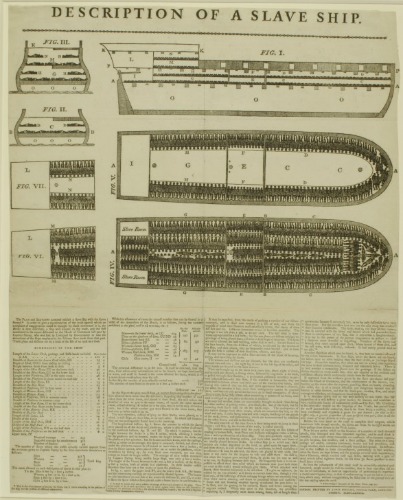

2. The trans-atlantic slave trade was one of the most despicable things people have done to other people. Transport conditions were especially bad, but at the time the public did not know much about the process. The Description of a Slave Ship engravings gave people a visual sense of what had previously only been conveyed orally. Over 10,000 copies of the engravings were created in under a year, giving strong support to the antislavery movement.

3. There are rare people in history who have contributed more to visualization than anyone else. William Playfair is one of these people. He is responsible for creating pie charts, bar graphs, and line and area charts. These charts are commonplace today, but imagine being the first person to create one and seeing how powerful they can be to help communicate numerical information.

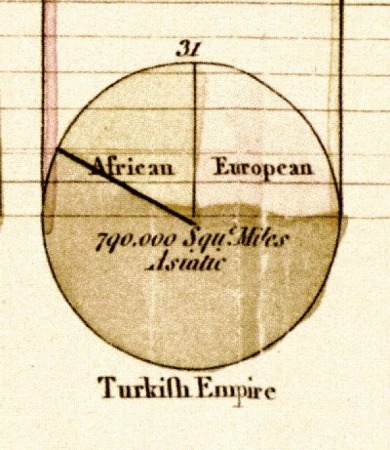

This image is of the first pie chart ever produced. At the time, visually depicting a part-whole relationship was a novel idea.

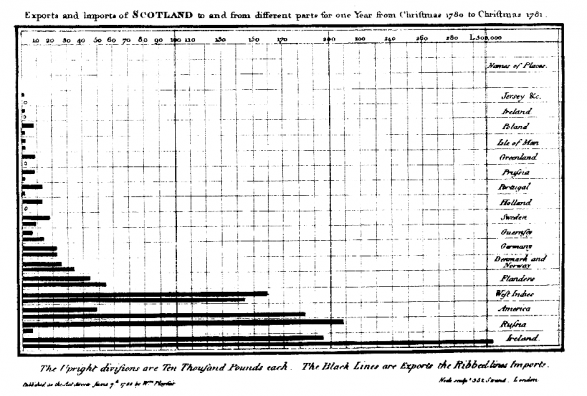

4. Playfair’s bar charts were inspired by timeline visualizations produced by Joseph Priestly and by a lack of detailed data.

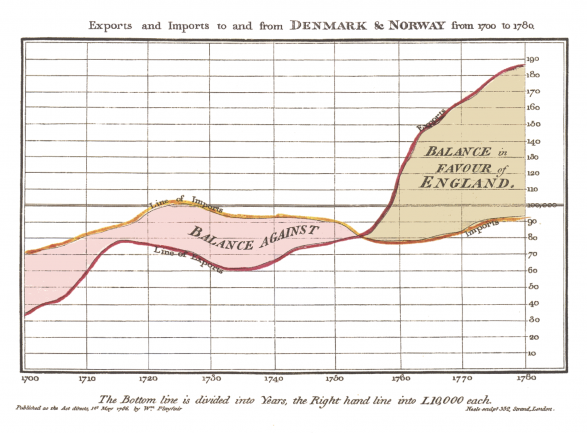

5. This line chart is especially interesting because Playfair showed that it is not just the lines themselves that convey meaning. The interaction between the lines also shows information.

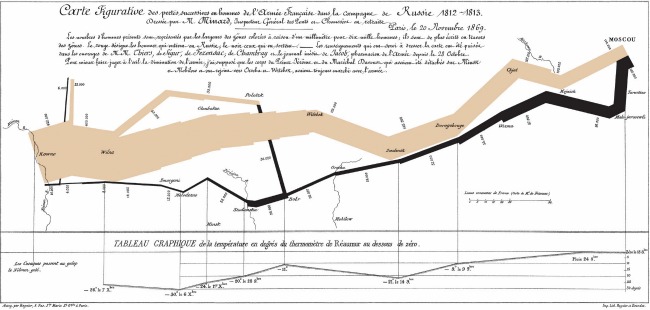

6. Of all of the visualizations in this post, Charles Minard’s map of Napoleon’s March is probably the most famous. Edward Tufte singled it out as “the greatest statistical graphic ever“, pushing it into the public consciousness. Whether it really is the greatest ever or not, this image does a great job of showing the miserable failure of the march, and the correlation with really cold weather.

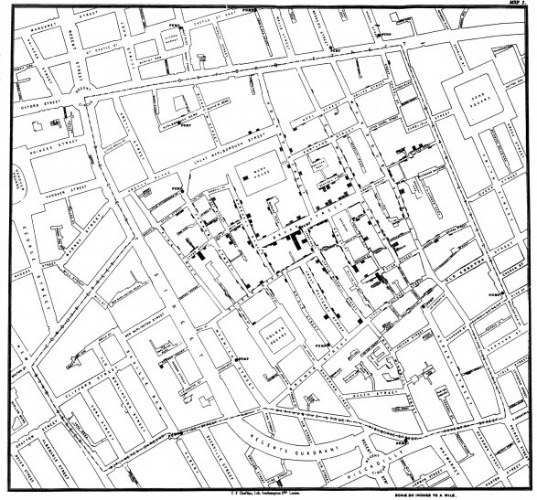

7. Today we know that cholera is spread through water, but in the early 1800s people weren’t sure. John Snow’s cholera map helped to show that contaminated wells were at the center of outbreaks. His research helped save countless lives and set the foundation for the field of epidemiology.

8. Another lifesaving visualization came from Florence Nightingale. Nightingale was a nurse during the Crimean War and was also very adept at statistics. Her reports to British parliament contained chart types that she invented, the Coxcomb Plot. These charts helped to prove to parliament that sanitation was important to the survival rate and that the Royal Commission that she had convinced them to start was helpful.

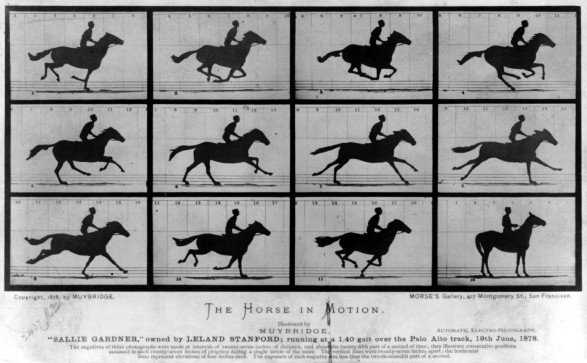

9. If something moves so fast that you can’t see it clearly, how do you know exactly what it is doing? Today, we would use a high speed camera to take slow motion video, but in the 1700s that technology didn’t exist. Most visualizations so far involved capturing information over a long period of time and condensing it into a single digestible image. Eadweard Muybridge‘s work does the opposite. As challenged by Leland Stanford, Muybridge took photos of a horse moving so quickly it was difficult to see. The series of photos effectively “slowed down” the motion so that people could tell that a horse does indeed lift all four legs off the ground during a gallop.

10. It isn’t very often that people are aware they are making history while they are making it, but Richard Grumm and his team probably had a pretty good idea. They were the team in charge of the tape recorder on the Mariner 4 probe sent to Mars. The recorder was set to record the data from the television camera on the probe before transmitting the data back home. If all went well, the transmitted images would be the very first up close pictures of Mars! Unfortunately, once the data was received, it would take computers hours to turn the numbers into an image so Grumm and his team decided to hand color the data stream as it was printed out on ticker tape, just like a paint by number painting. The resulting image is red purely by coincidence, but the resemblance is remarkable.

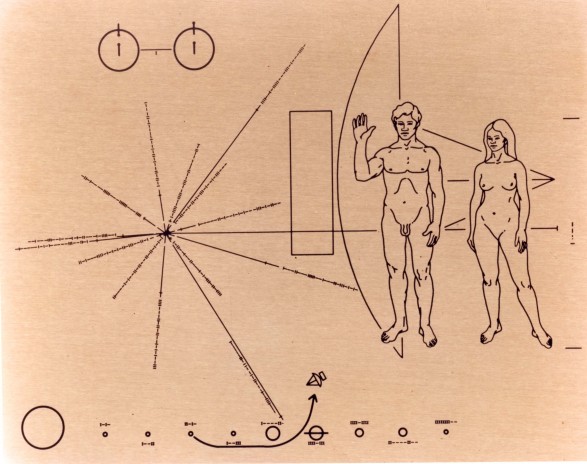

11. One really interesting task in visualization is to try to show something to extra-terrestrial life. How do we know they can see, let alone understand abstract drawn representations of real things? Despite the assumptions involved in undergoing a task like this, Pioneer 10 and 11 were both fitted with gold plaques depicting information about the craft, the species that created it, and where it came from. The spacecraft are still on their journey today, well past the edges of our solar system by now!

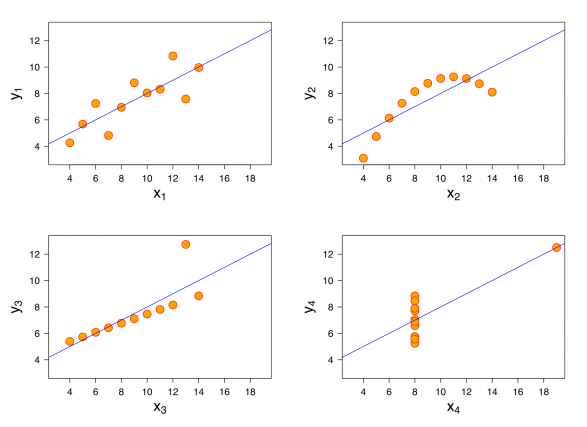

12. With the increasing prominence of computers in doing statistical work in the 1970s, the typical output of computers was all numerical. Francis Anscombe challenged this norm and argued that computers should also output charts and graphs to help people understand the numbers they were crunching. In order to support his argument, he created a set of numbers known now as Anscombe’s Quartet. These numbers have identical statistical qualities (mean, variance, correlation, linear regression) but there are definite patterns shown in each set. Without visualization these patterns are hard to spot.
